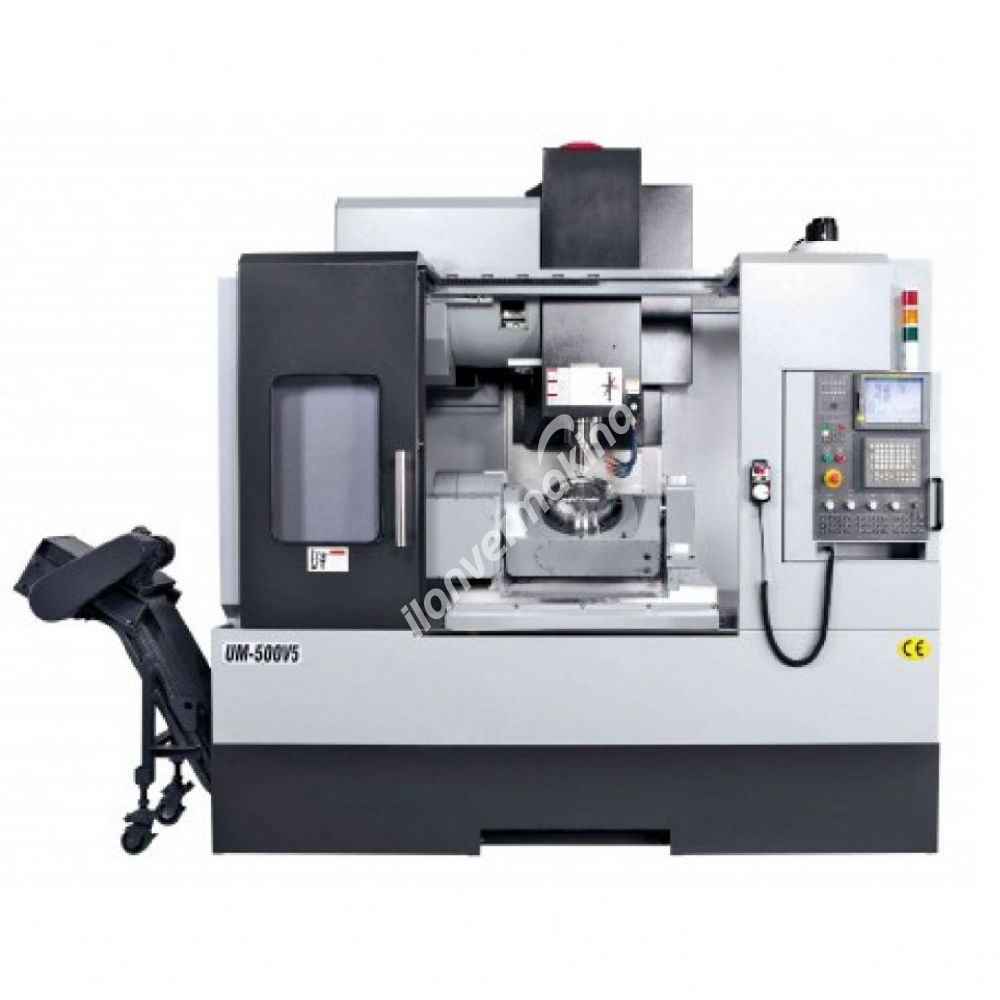

| ITEM / MODEL | UM-350 | UM-500 | |
|---|---|---|---|
| Controller | FANUC 0i-M | ||
| SPINDLE | |||
| Spindle speed |
rpm
|
12000 (15000) | |
| Spindle nose taper |
-
|
BT 40 | |
| Bearing inner diameter |
mm
|
70 | |
| Drive system |
-
|
Direct | |
| TRAVELS | |||
| X-axis travel |
mm
|
700 | 1000 |
| Y-axis travel |
mm
|
550 | 650 |
| Z-axis travel |
mm
|
530 | |
| A-axis travel |
Deg
|
-120 / +10 | ± 120 |
| C-axis travel |
Deg
|
360 | |
| TABLE | |||
| Max. speed of rotary axis (C-axis) |
rpm
|
33.3 | 16.6 |
| Max. speed of tilting axis (A-axis) |
rpm
|
25 | 11.1 |
| Max. table loading at 0° |
kg
|
200 | 300 |
| Max. table loading at 90° |
kg
|
100 | 250 |
| Spindle nose to table |
mm
|
120 ~ 590 | |
| Table dimension |
mm
|
Ø 350 | Ø600/ □ 500 |
| Max. workpiece size |
mm
|
Ø 450 x 450 | Ø 600 x 450 |
| T-slot size |
mm
|
12 | 14 |
| FEED RATES | |||
| (X/ Y/ Z) Rapid traverse rate |
m/min
|
42 / 42 / 30 | 30 / 30 / 30 |
| Cutting feed rate |
m/min
|
12 | |
| Ball screw diameter |
mm
|
Ø 45 | |
| Guideway type |
-
|
Roller | |
| AUTOMATIC TOOL CHANGE SYSTEM | |||
| Tool magazine capacity |
pcs
|
24 | |
| Max. tool weight |
kg
|
7 | |
| Max. tool diameter |
mm
|
80 | |
| Max. tool diameter without adjacent tools |
mm
|
150 | |
| Method of tool exchange |
-
|
Arm type | |
| Max. tool length |
mm
|
300 | |
| MOTOR | |||
| Spindle motor power (Cont. / 30 min) |
kW
|
7.5 / 11(15 / 18.5) | |
| X/Y/Z feed motor |
kW
|
3 / 3 / 4 | 4 / 4 / 7 |
| Coolant pump motor (50 Hz / 60 Hz) |
kW
|
0.53 + 0.85 / 0.75 + 1.27 | |
| OTHERS | |||
| Air supply |
kg/cm²
|
5.5 | |
| Machine weight |
kg
|
7500 | 9000 |
| Machine dimension (L × W × H) |
m
|
2.7 x 2.2 x 3.2 | 3.0 x 2.2 x 3.2 |
