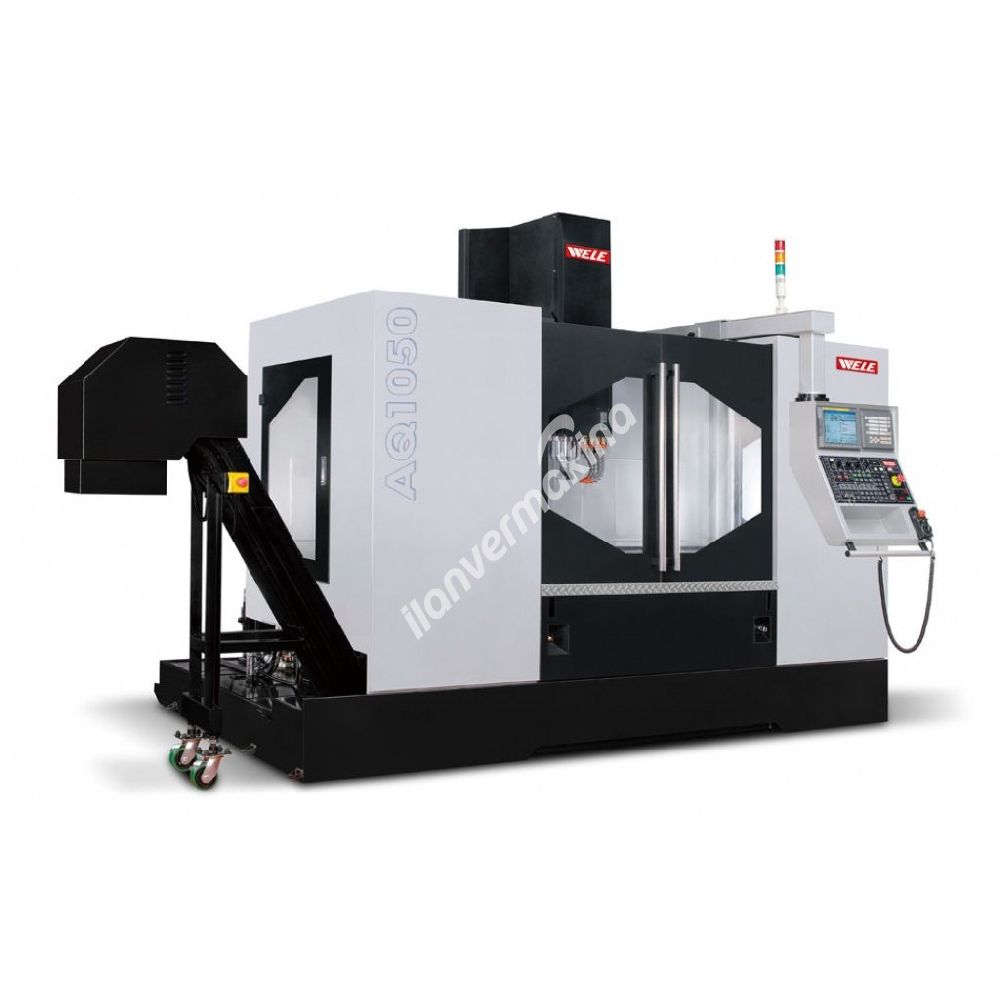

| Specification/ Machine model | Unit | AQ850 | AQ1050 |
|---|---|---|---|
| X axis travel | mm (in) | 800 (31.5) | 1020 (40.2) |
| Y axis travel | mm (in) | 510 (20.1) | |
| Z axis travel | mm (in) | 510 (20.1) | |
| From spindle nose to the centerline of table | mm (in) | 125-635 (4.9-25) | |
| Table dimension (X direction) | mm (in) | 1000 (39.4) | 1200 (47.2) |
| Table dimension (Y direction) | mm (in) | 510 (20.1) | |
| Table loading | kg (lb) | 500 (1102) | |
| Spindle motor power | kW (HP) | 5.5/7.5(7.5/11) | |
| Spindle speed | rpm | direct driven type, 10000 | |
| Spindle taper | BBT40 | ||
| Rapid feedrate - X axis | mm(in)/min | 48000 (1889.8) | |
| Rapid feedrate - Y axis | mm(in)/min | 48000 (1889.8) | |
| Rapid feedrate - Z axis | mm(in)/min | 36000 (1417.3) | |
| Cutting federate | mm(in)/min | 1-10000 (0.04-393.7) | |
| Capacity of tool magazine | pcs | 24T | |
| Max. diameter of tool / Adjacent pocket empty | mm (in) | 80/150 (3.1/5.9) | |
| Max. length of tool | mm (in) | 250(9.8) | |
| Max. weight of tool | kg (lb) | 7(15) | |
| Positioning accuracy (JIS 6338) | mm (in) | ±0.005/300 (±0.0002/11.8) | |
| Positioning accuracy (VDI/DGQ 3441) | mm (in) | P≦0.012 (P≦0.0005) | |
| Repeatibility accuracy (JIS 6338) | mm (in) | ±0.003 (±0.0001) | |
| Repeatibility accuracy (VDI/DGQ 3441) | mm (in) | Ps≦0.006 (Ps≦0.0002) | |
| Length of the machine | mm (in) | 2900 (114.2) | 3100 (122) |
| Width of the machine | mm (in) | 2150 (84.6) | |
| Height of the machine | mm (in) | 2900 (114.2) | |
| Weight of the machine | kg (lb) | 6700 (14771) | 7200 (15873) |
