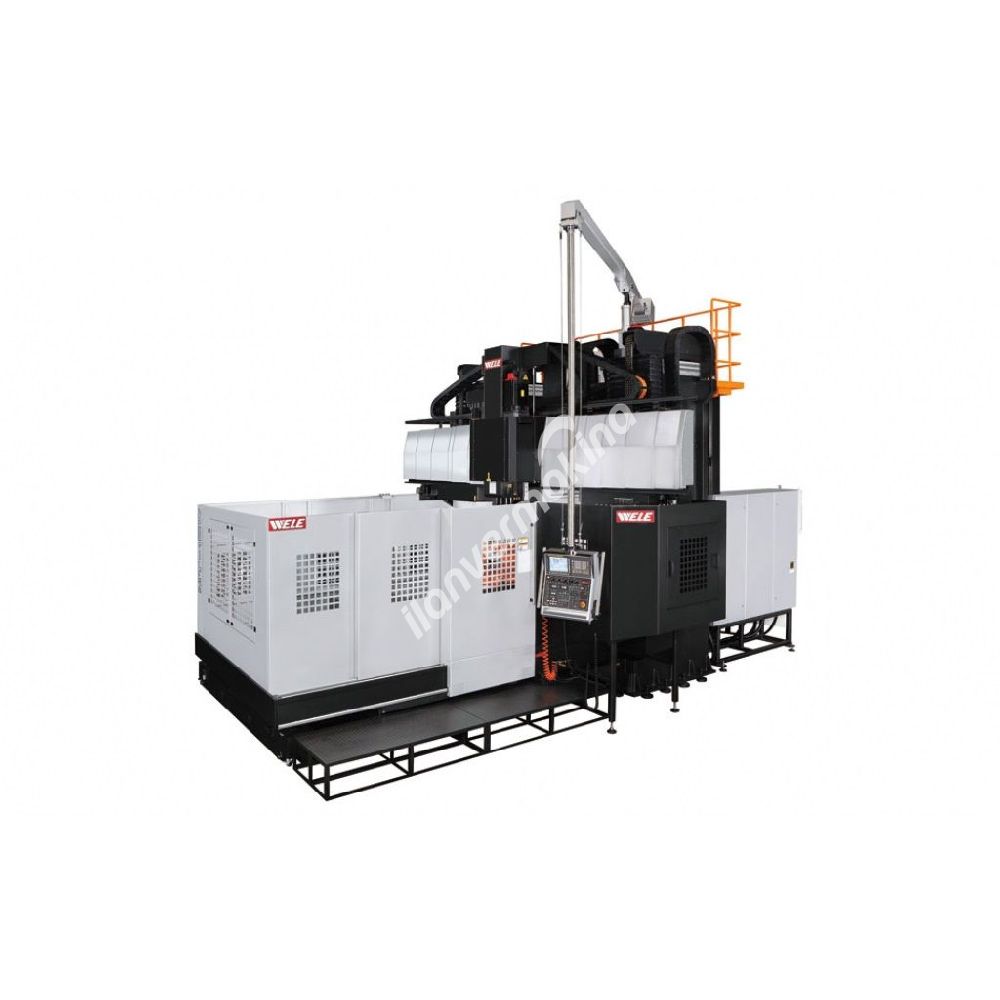

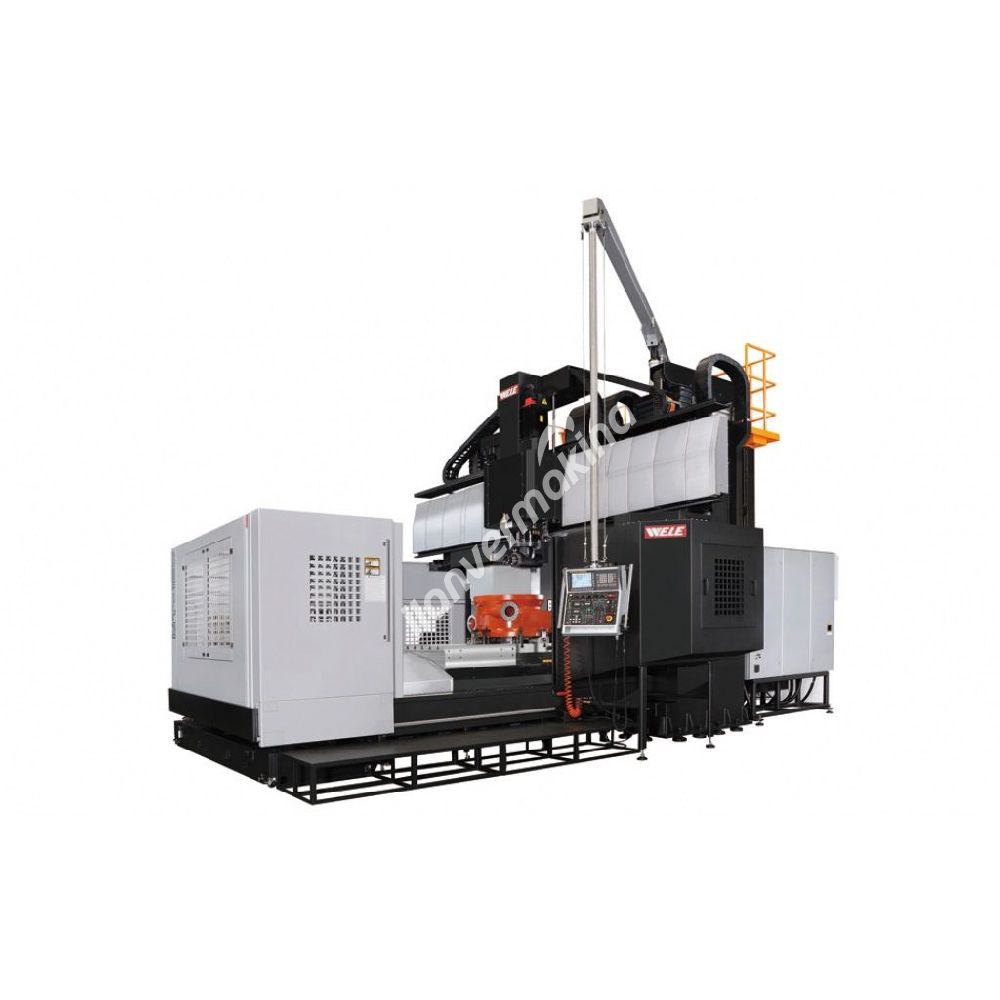

| Specification/ Machine model | Unit | MT-16W | MT-20W |
|---|---|---|---|
| X axis travel | mm (in) | 2800 (110.2) | 3200 (125.9) |
| Y axis travel | mm (in) | 3060 (120.4) | 3500 (137.7) |
| Z axis travel | mm (in) | 800 (31.4) | |
| W axis travel | mm (in) | 1000 (39.3) | |
| Max. diameter | mm (in) | 1600 (62.9) | 2000 (78.7) |
| Max.turning radius of gyration of area | mm (in) | 2100 (82.6) | 2500 (98.4) |
| Max. height of turning | mm (in) | 1700 (66.9) | |
| Max. width of milling | mm (in) | 2300 (90.5) | 2700 (106.2) |
| Max. height of milling | mm (in) | 1800 (70.8) | |
| Table loading | kg (lb) | 12000 (26455) | 15000 (33069) |
| Spindle motor power | kW (HP) | 22/26 (30/35) | |
| The highest rotational speed of Vertical milling | rpm | 10-6000 (0.39-236.2) | |
| The highest rotational speed of Horizontal milling | rpm | 10-2400 (0.39-94.4) | |
| Spindle taper | BBT50 | ||
| Rapid feedrate - X axis | mm(in)/min | 18000 (708.6) | 15000 (590.5) |
| Rapid feedrate - Y axis | mm(in)/min | 18000 (708.6) | 15000 (590.5) |
| Rapid feedrate - Z axis | mm(in)/min | 15000 (590.5) | |
| Rapid feedrate - W axis | mm(in)/min | 3000 (118.1) | |
| Cutting federate | mm(in)/min | 1-10000 (0.04-393.7) | |
| Capacity of tool magazine | pcs | 60 | |
| Max. diameter of tool / Adjacent pocket empty | mm (in) | 127/215 (5/8.4) | |
| Max. length of tool | mm (in) | 400 (15.7) | |
| Max. weight of tool | kg (lb) | 20 (44) | |
| Positioning accuracy (JIS 6338) | mm (in) | ±0.015(0.000591)/ full travel | |
| Positioning accuracy (VDI/DGQ 3441) | mm (in) | P=0.019(0.000748)/ full travel) | |
| Repeatibility accuracy (JIS 6338) | mm (in) | ±0.005 (0.000197) | |
| Repeatibility accuracy (VDI/DGQ 3441) | mm (in) | Ps=0.015 (0.000591) | |
| Length of the machine | mm (in) | 9990 (393.3) | 10990 (432.6) |
| Width of the machine | mm (in) | 7650 (301.1) | 8050 (316.9) |
