Resmi büyütmek için resmin üzerine tıklayın.
Diğer resimlere göz atmak için resimleri parmağınız ile kaydırabilirsiniz.

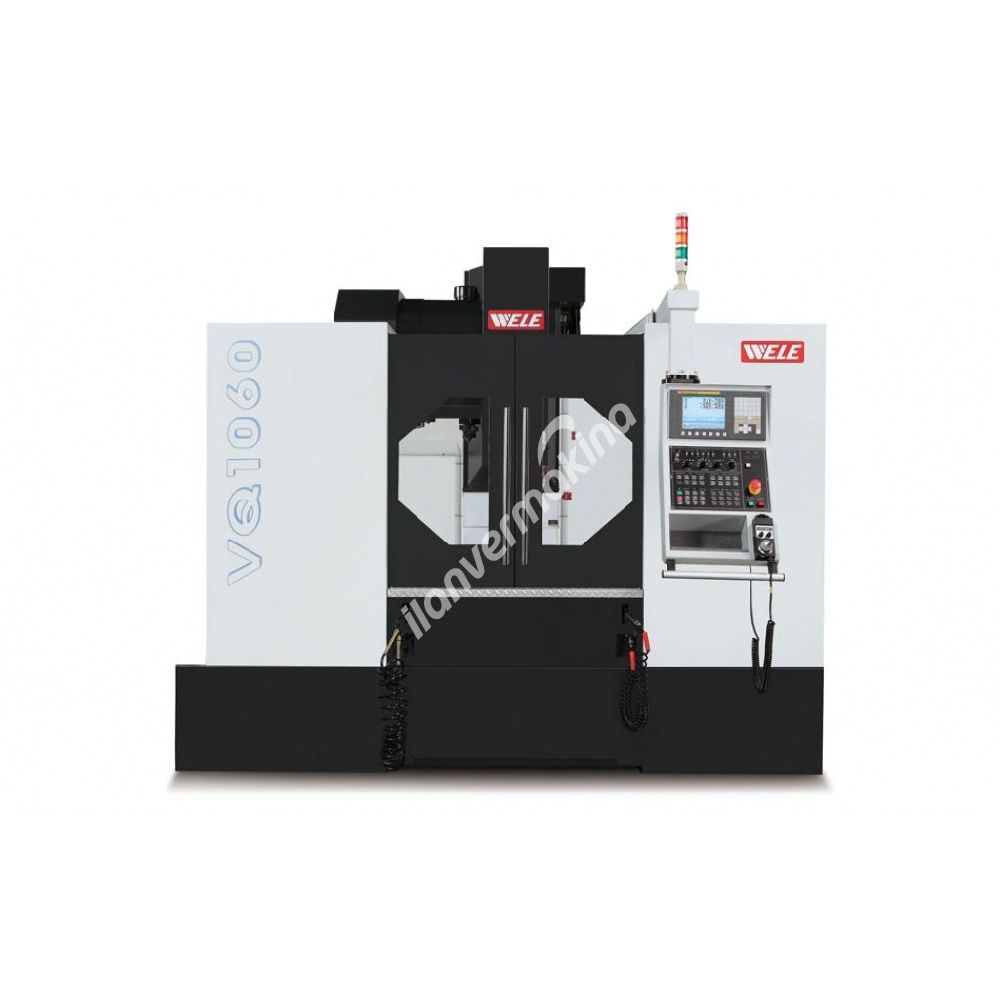

| Specification/ Machine model | Unit | VQ650 | VQ1060 |
|---|---|---|---|
| X axis travel | mm (in) | 650 (25.5) | 1020 (40.2) |
| Y axis travel | mm (in) | 510 (20) | 600 (23.6) |
| Z axis travel | mm (in) | 510 (20) | 600 (23.6) |
| From spindle nose to the centerline of table | mm (in) | 100-610 (3.9-24) | 105 -05 (4.1-27.7) |
| Table dimension (X direction) | mm (in) | 800 (31.4) | 1150 (45.3) |
| Table dimension (Y direction) | mm (in) | 510 (20) | 600 (23.6) |
| Table loading | kg (lb) | 500 (1102) | 700 (1543) |
| Spindle motor power | kW (HP) | 7.5/11 (10/15) | 7.5/11 (10/15) |
| Spindle speed | rpm | belted type, 10000 | belted type, 10000 |
| Spindle taper | BT40 | BT40 | |
| Rapid feedrate - X axis | mm(in)/min | 36000 (1417.3) | 36000 (1417.3) |
| Rapid feedrate - Y axis | mm(in)/min | 36000 (1417.3) | 36000 (1417.3) |
| Rapid feedrate - Z axis | mm(in)/min | 30000 (1181.1) | 30000 (1181.1) |
| Cutting federate | mm(in)/min | 10000 (393.7) | 10000 (393.7) |
| Capacity of tool magazine | pcs | 24T | 24T |
| Max. diameter of tool / Adjacent pocket empty | mm (in) | 78 / 150 (3.07 / 5.91) | 80 / 125 (3.1 / 4.92) |
| Max. length of tool | mm (in) | 300 (11.8) | 300(11.8) |
| Max. weight of tool | kg (lb) | 7 (15.4) | 7 (15.4) |
| Positioning accuracy (JIS 6338) | mm (in) | ±0.003 (±0.0001) | ±0.005 (±0.0002) |
| Positioning accuracy (VDI/DGQ 3441) | mm | P≦0.012 (0.0005) | P≦0.02 (0.0008) |
| Repeatibility accuracy (JIS 6338) | mm | ±0.002 (±0.00008) | ±0.003 (±0.0001) |
| Repeatibility accuracy (VDI/DGQ 3441) |
