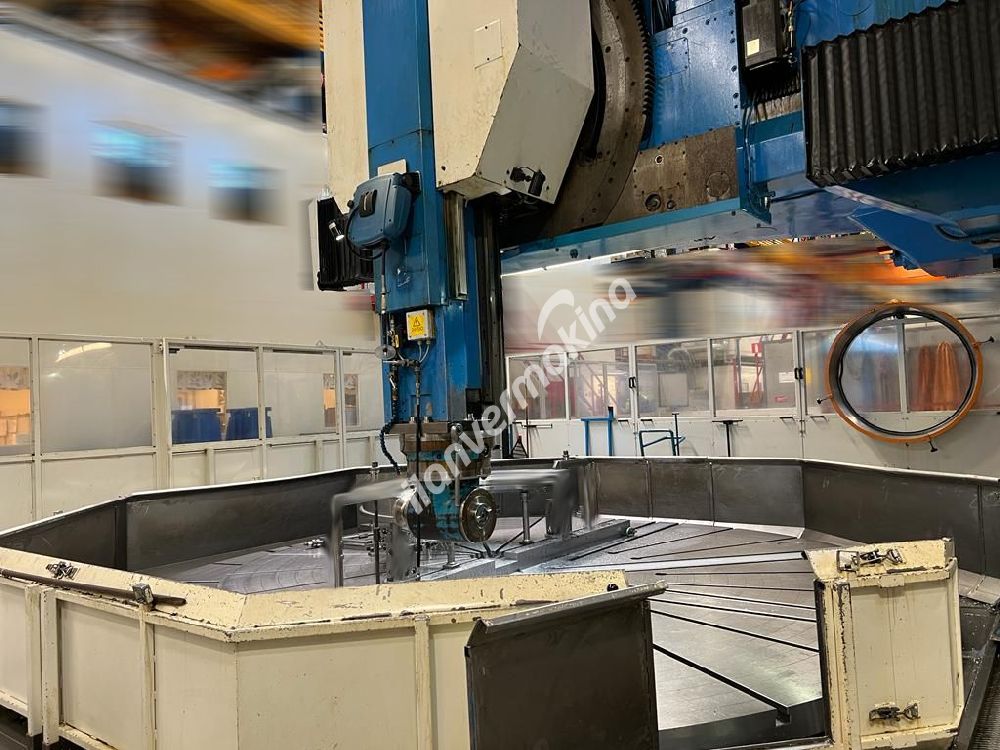

VTL Froriep 40KE 500/600-400 Spheromill (5-axis CNC-controlled, turning and milling)

·       Year of Manufacture: 1970 (Retrofitted: 1984 and 2006 and 2015)

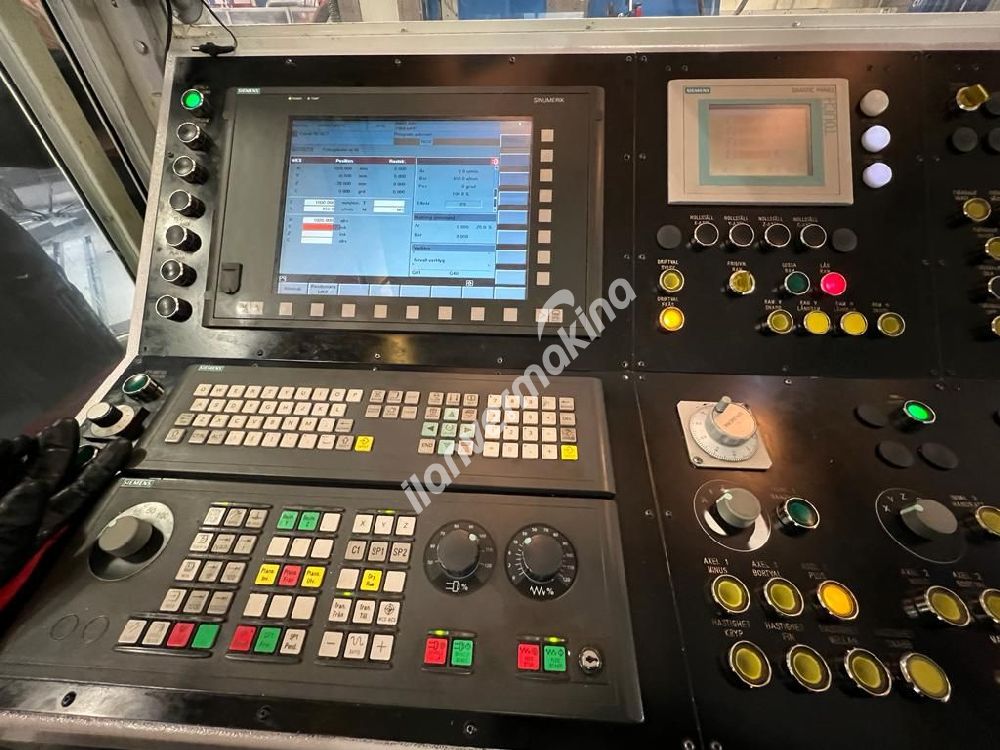

·       Control System: Siemens 840D

·       Table Diameter: 5000 mm

·       Maximum Turning Diameter: 17,000 mm

·       Maximum Working Height: 4000 mm

·       Milling Length: 8500 mm (table is moving)

·       Table Speed (Max): 40 rpm (100 kW)

·       Maximum Table Load: 100 tons

Additional Equipment:

·       Milling head (800 rpm / 60 kW)

·       Universal milling head (630 rpm)

·       Facing slide for diameters up to 1000 mm

·       Grinding equipment

·       90-degree angle-head (630 rpm)

·       Small 90-degree angle-head (450 rpm)

·       Many tools.
